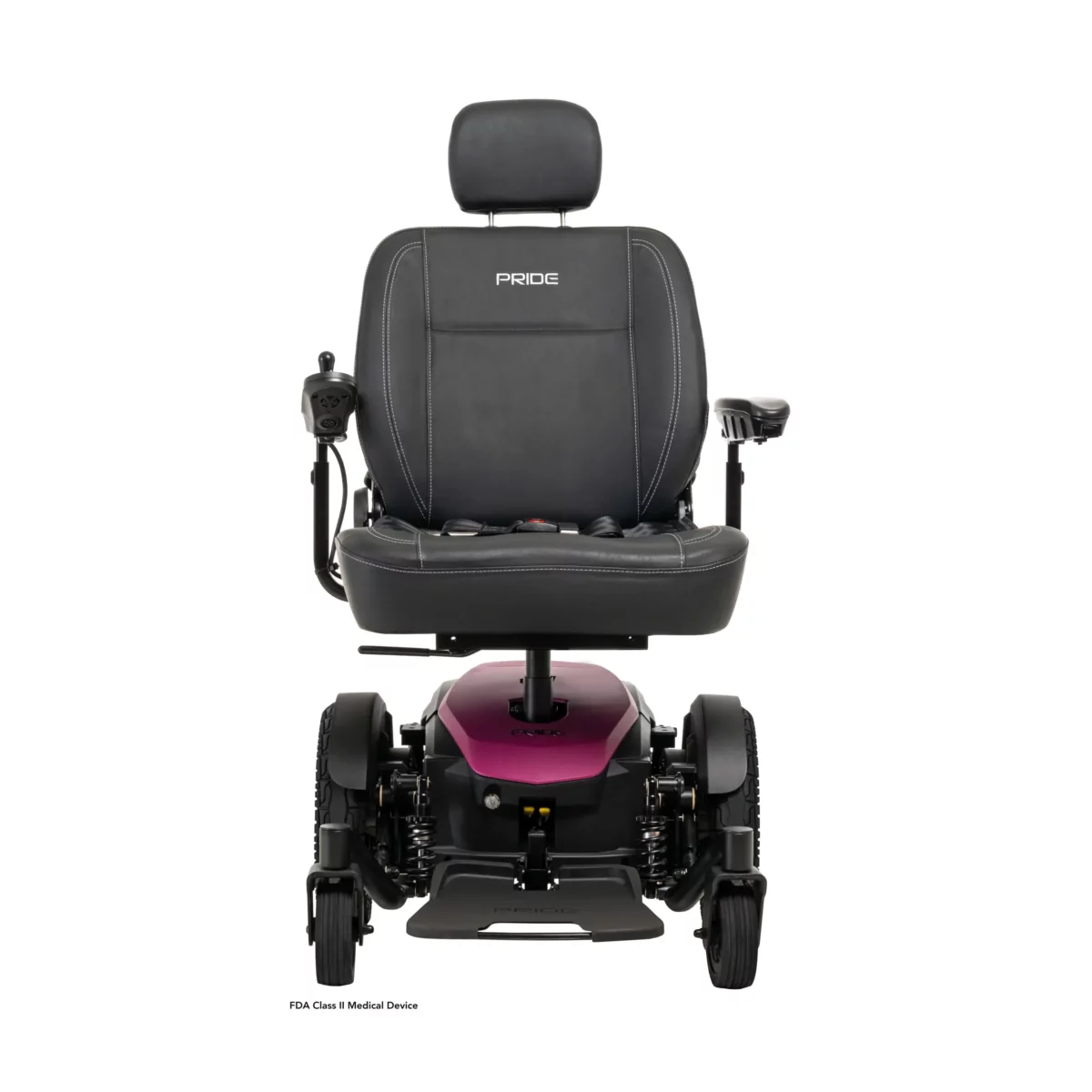

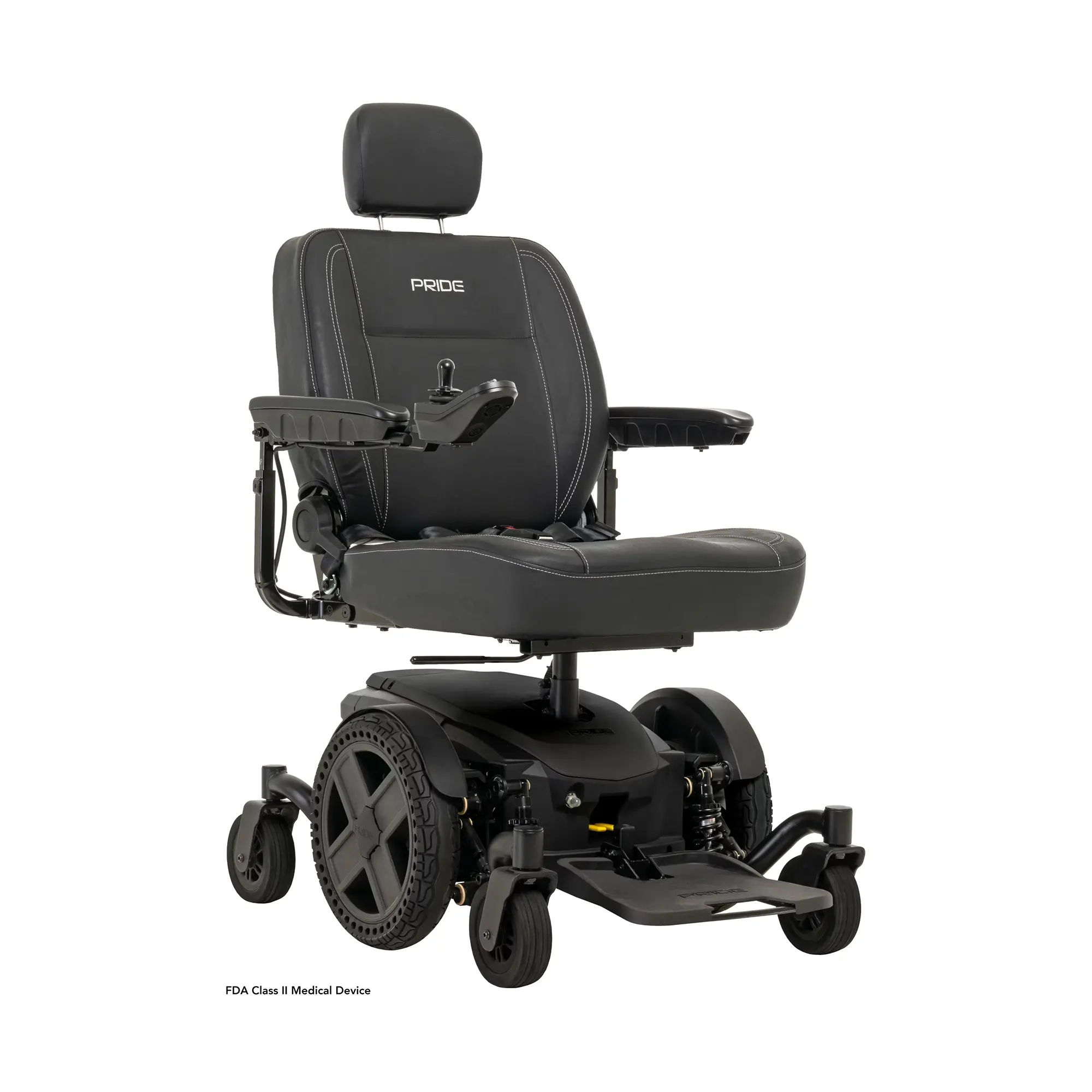

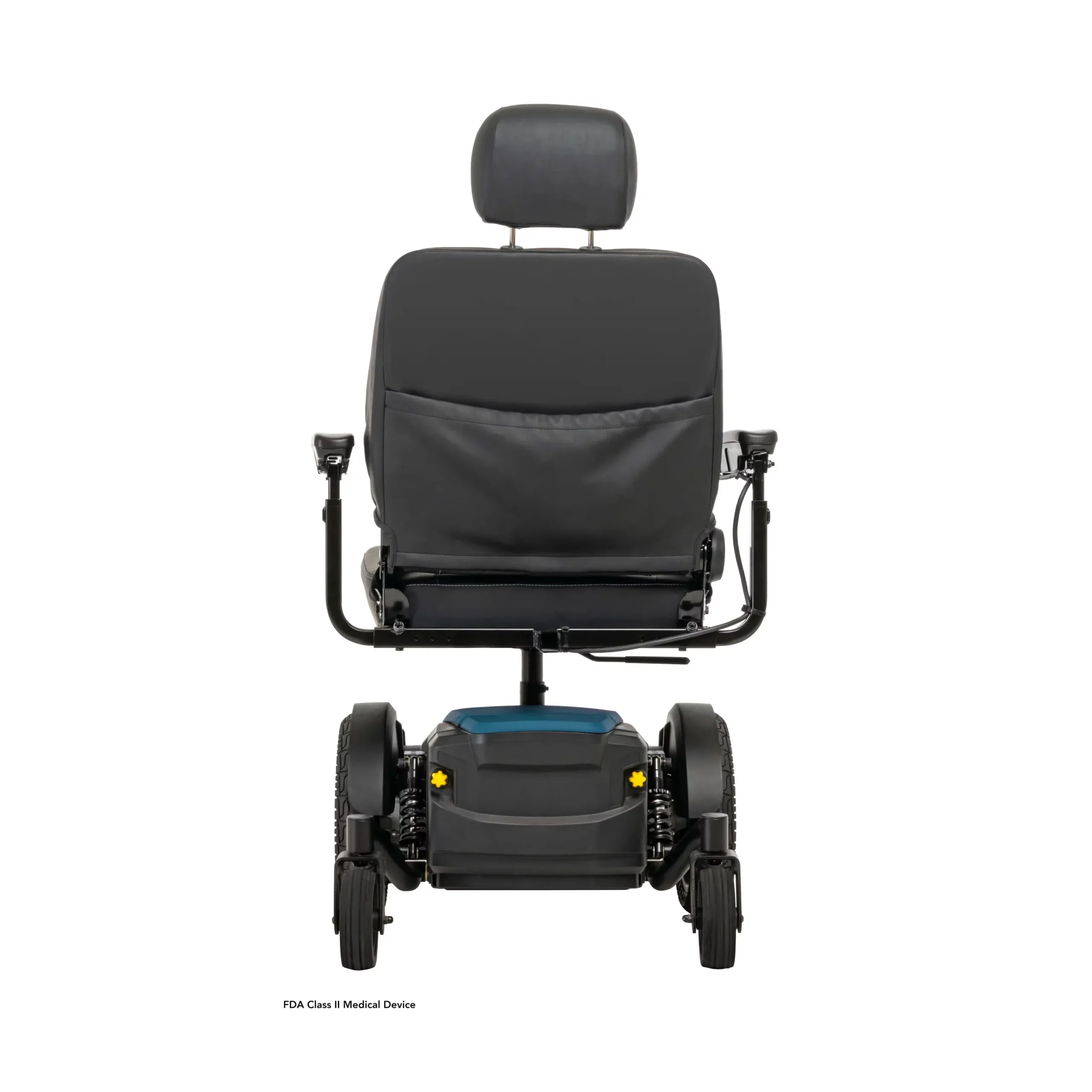

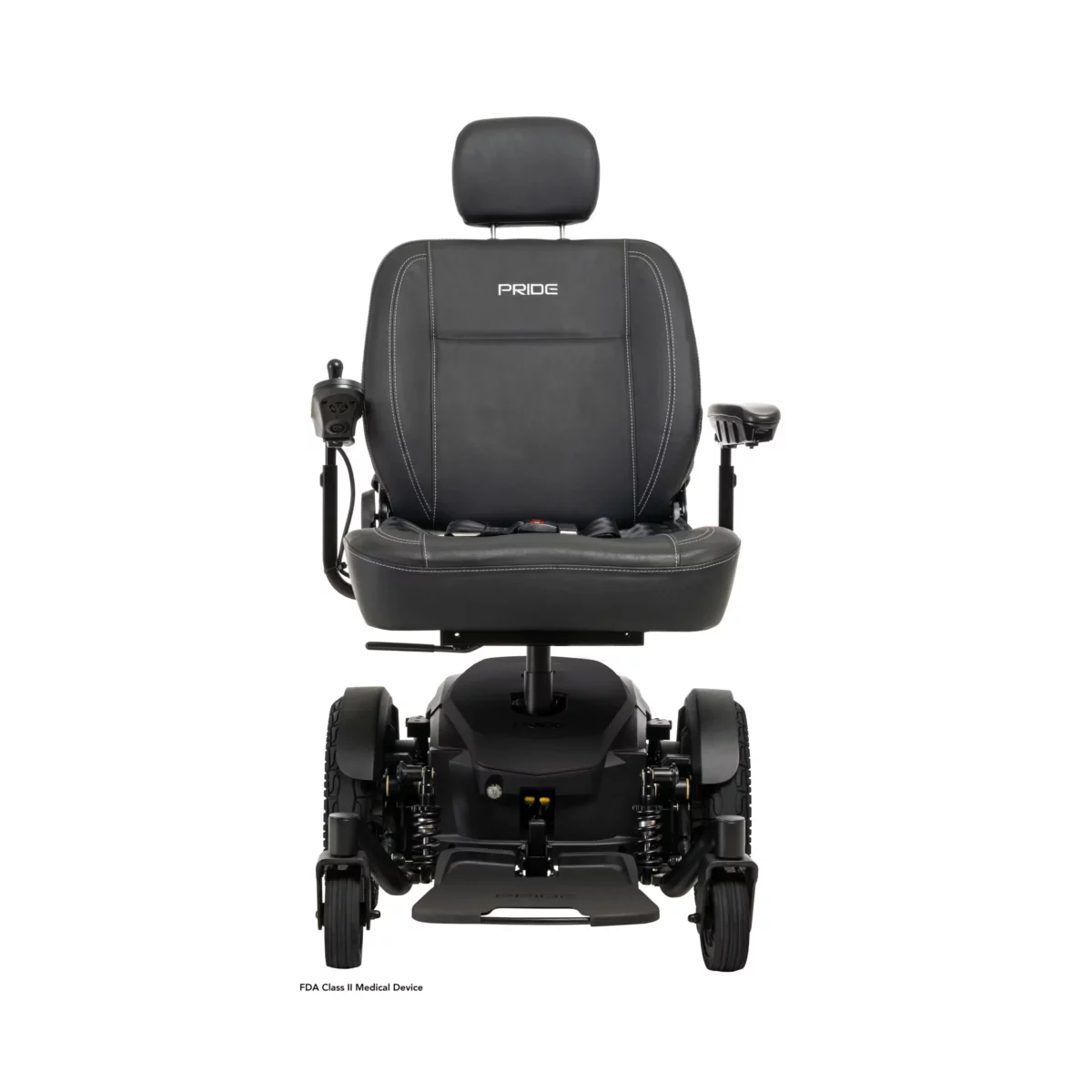

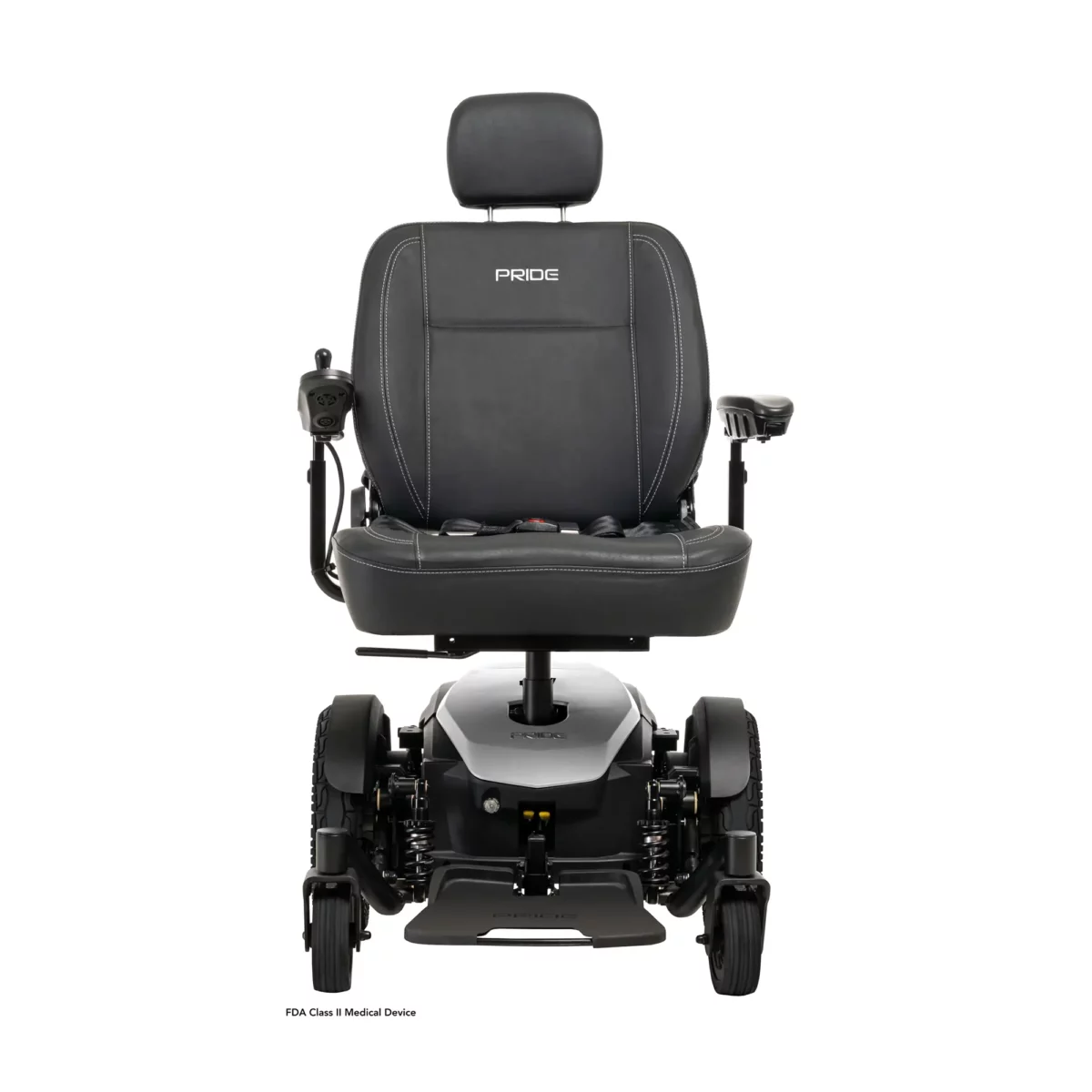

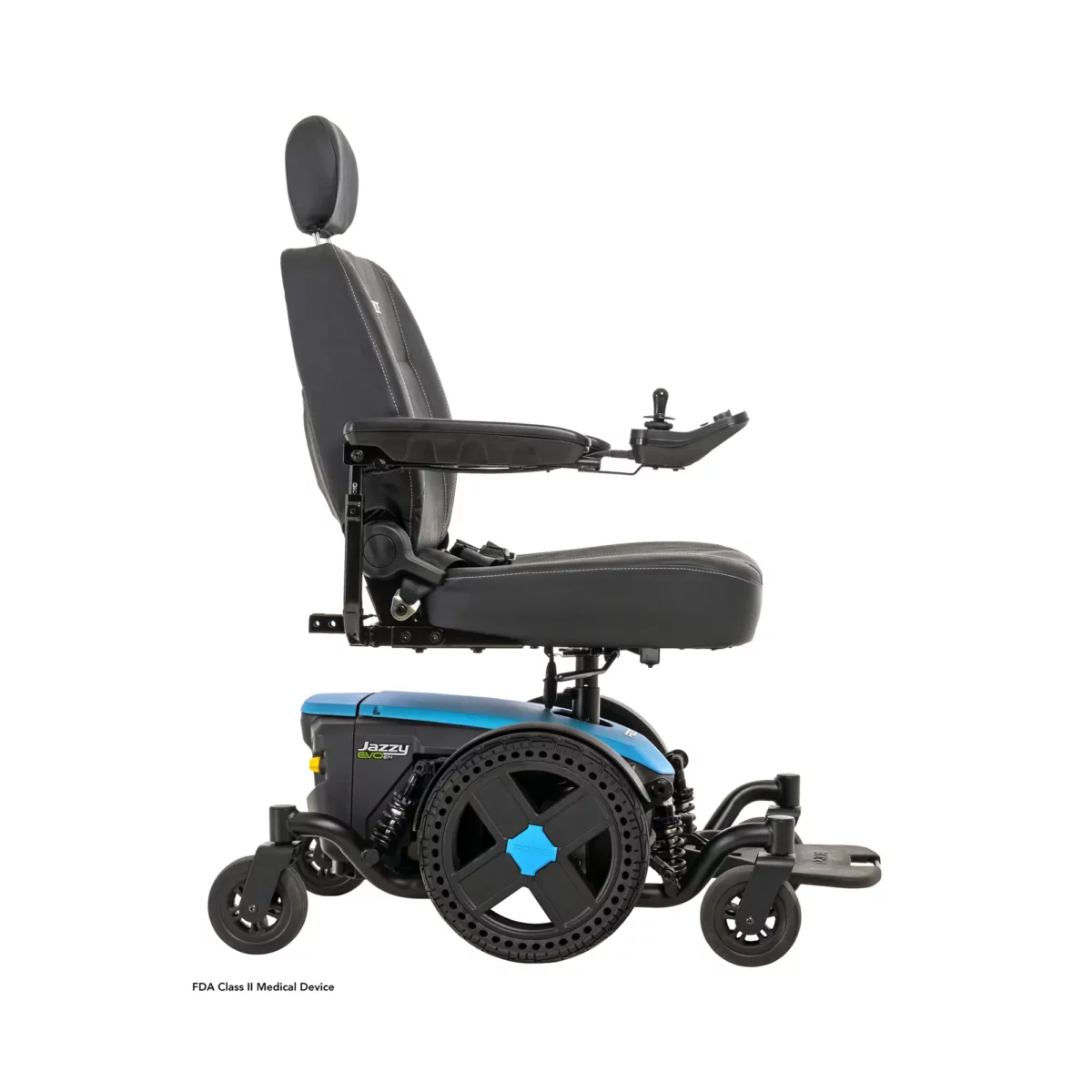

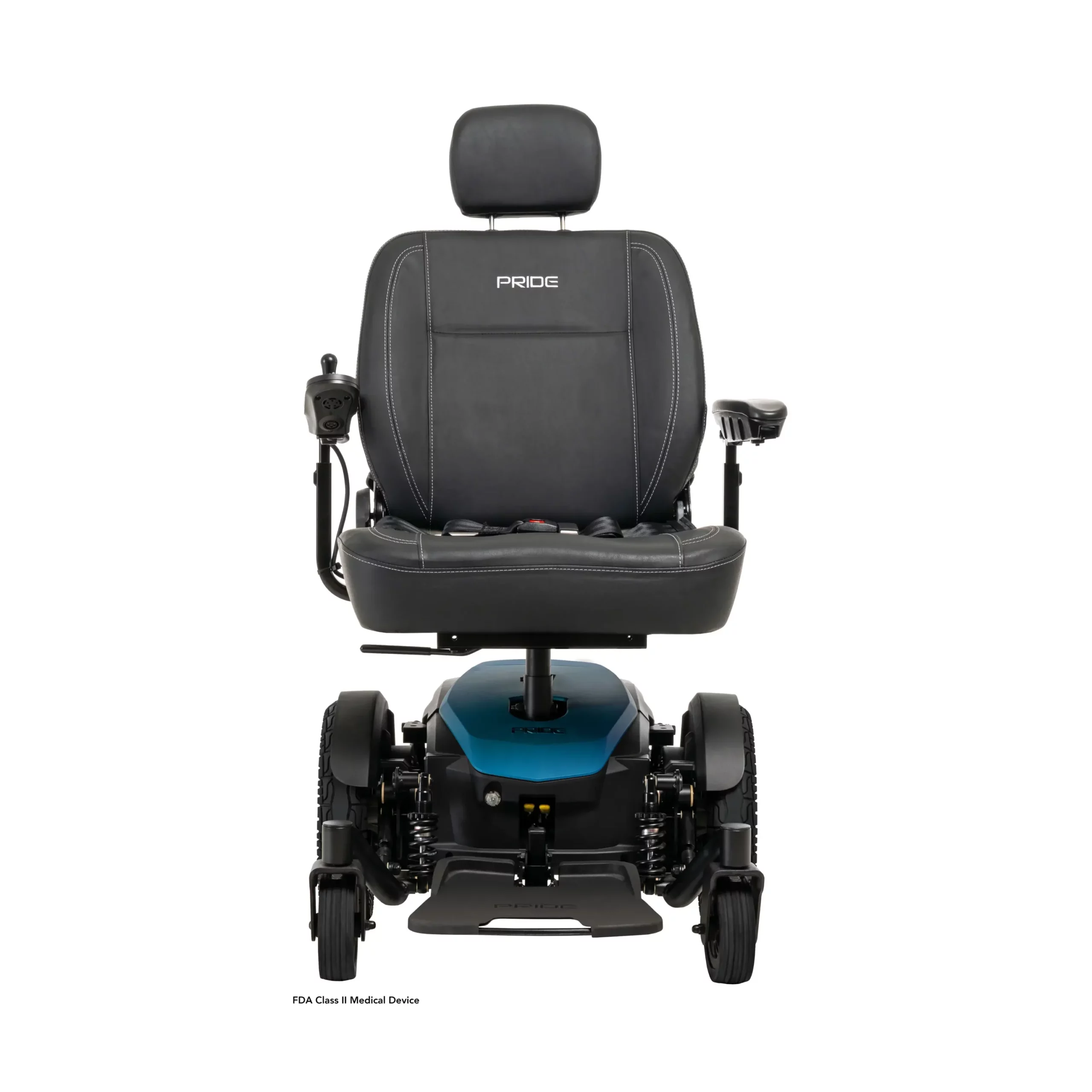

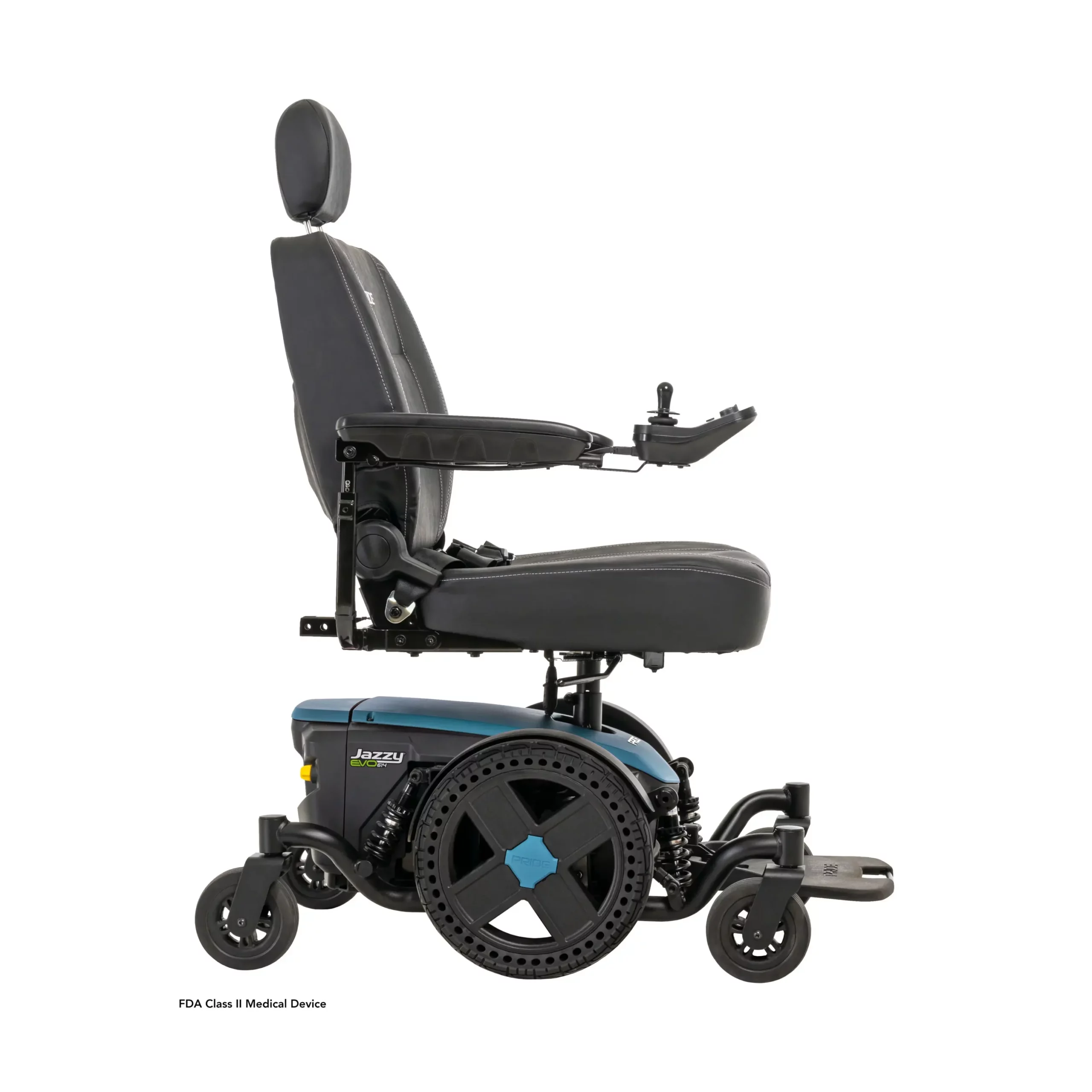

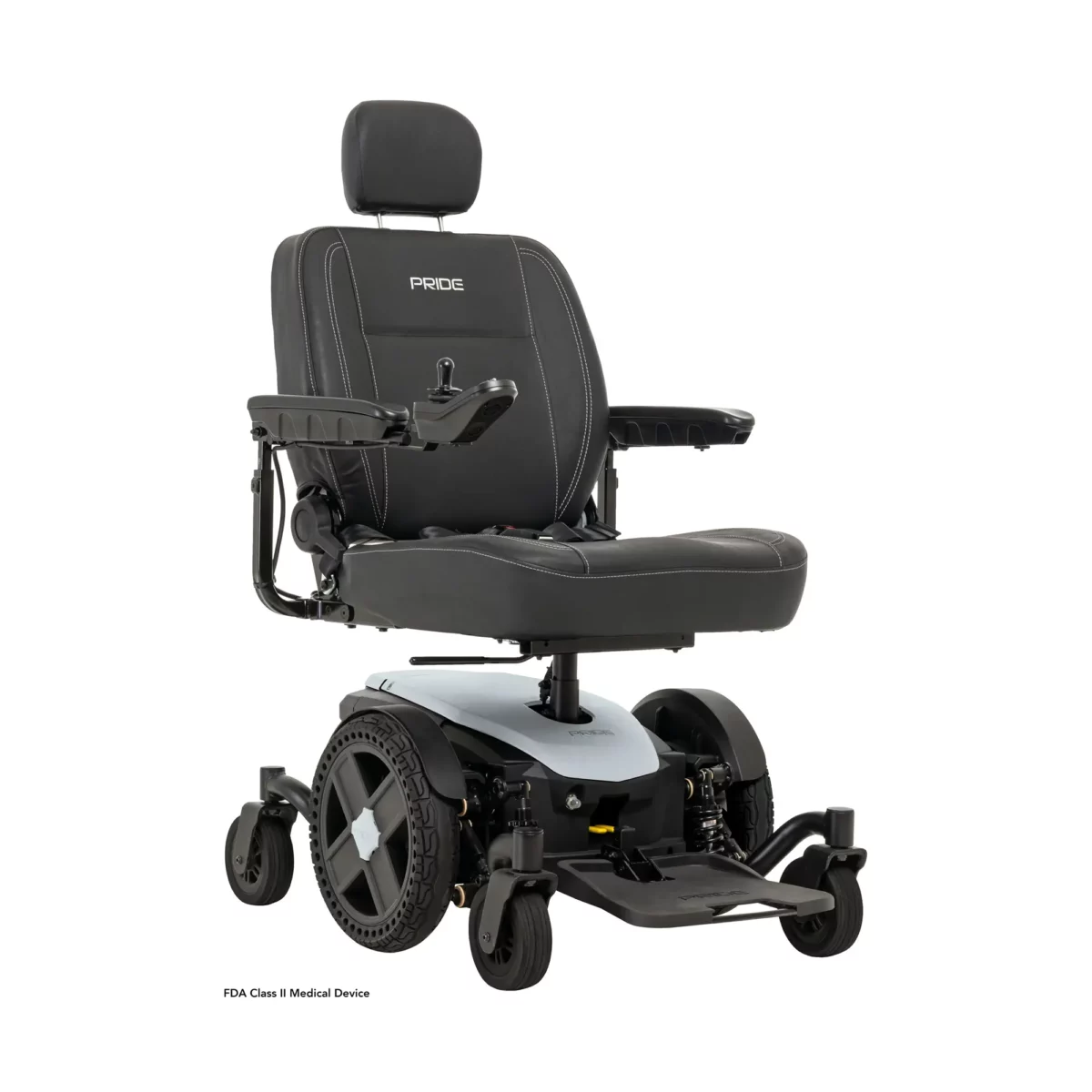

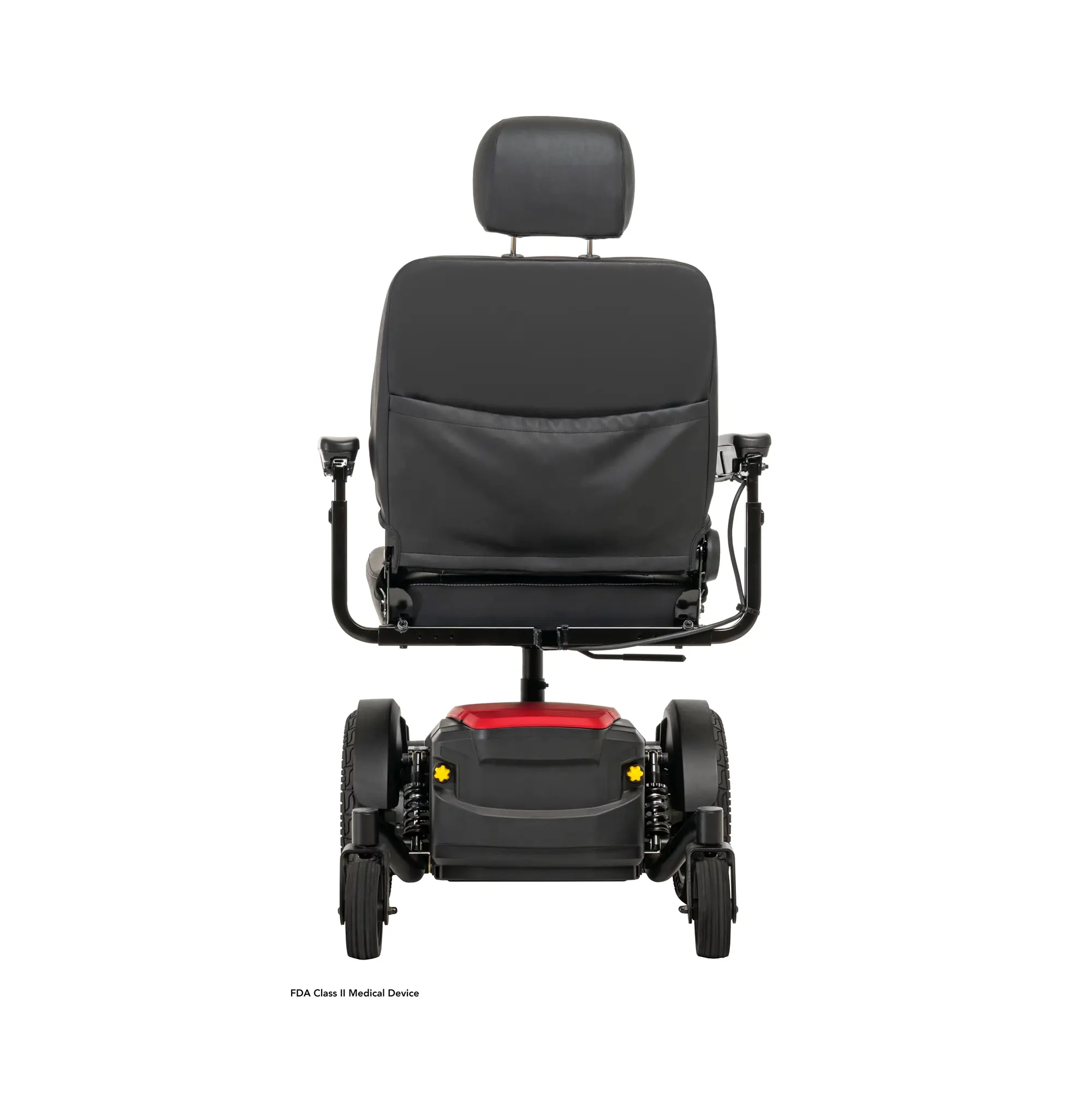

Jazzy EVO 614 Power Wheelchair
$3,769.00
At just 22 inches, Jazzy EVO 614’s turning radius comes in under two feet, which means your power wheelchair more easily navigates tight turns indoors and in your favorite shops and restaurants.
FDA Class II Medical Device*
Unlocks New Mobility Possibilities
When we imagined the Jazzy EVO 614 power wheelchair, we thought about all the opportunities that come only once. Your grandchild only graduates from high school once. You might only ever get one chance to take an Alaskan cruise with your high school friends. Your favorite play is showing for one weekend only at the local theater.
Built for your Adventures
The Jazzy EVO 614 is your ultimate mobility alternative. With new 13.75-inch perforated center drive wheels, a 3″ ground clearance and new top speed of up to 4.4 mph, it’s built for crossing the threshold for everyday use. At just 22- inch, Jazzy EVO 614’s turning radius comes in under two feet, which means your power wheelchair more easily navigates tight turns indoors and in your favorite shops and restaurants.
More Options to Customize your Ride
You want color options, and Jazzy EVO 614 has them. Interchangeable shrouds come in six striking colors. When you’re ready for something new, simply call your Pride dealer. Don’t give up on those once-in-a-lifetime moments. Find a Pride dealer near you and start your own adventure.
Features:
- 300 lbs. weight capacity
- Up to 4.4 mph
- 22” turning radius
- Up to 19 miles at 300 lbs., 21.5 miles at 200 lbs.

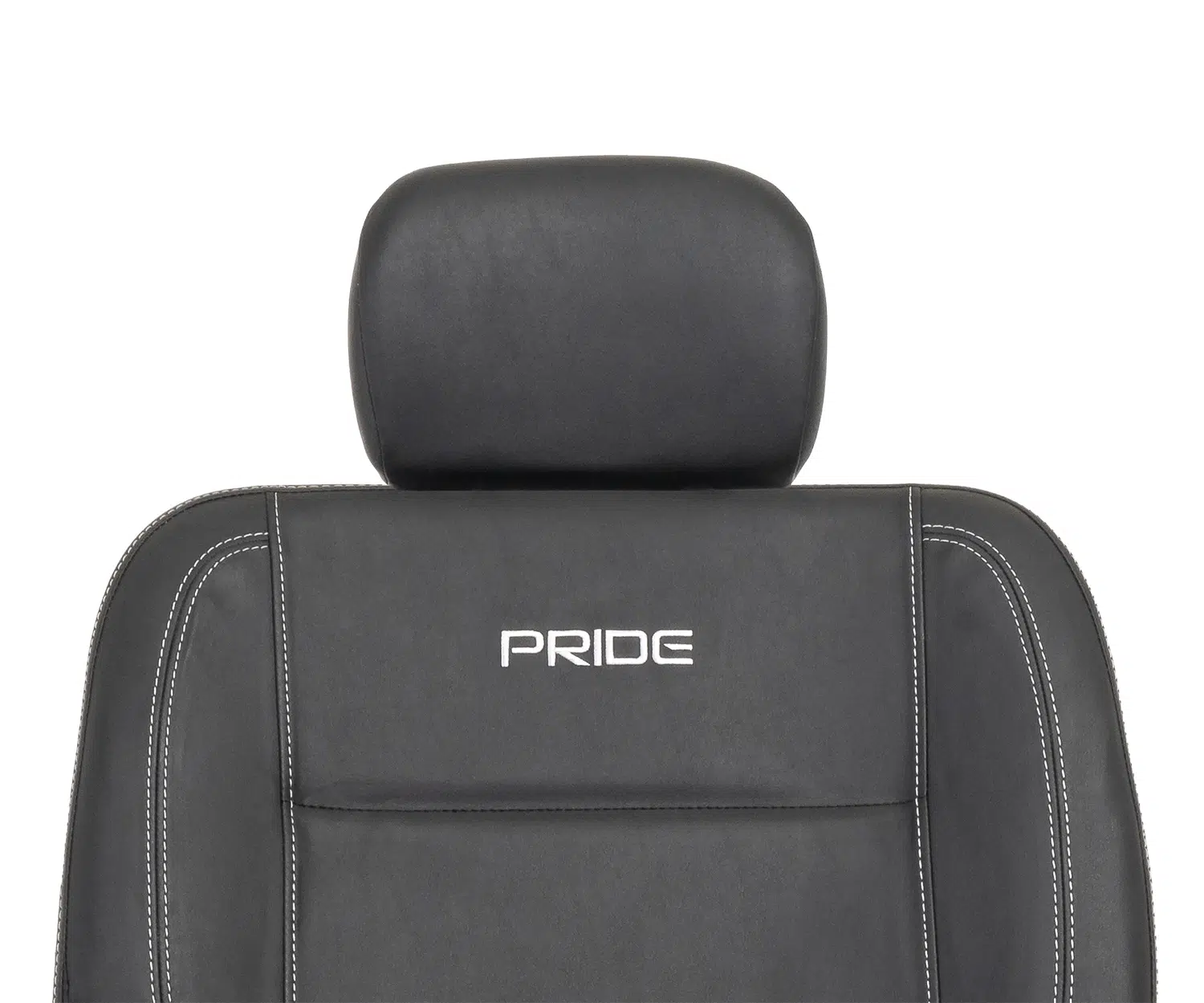

- New! Depth adjustable, limited recline memory foam high-back seat with headrest and single seat post allows the user to swivel
- New! 13.75” perforated drive tires

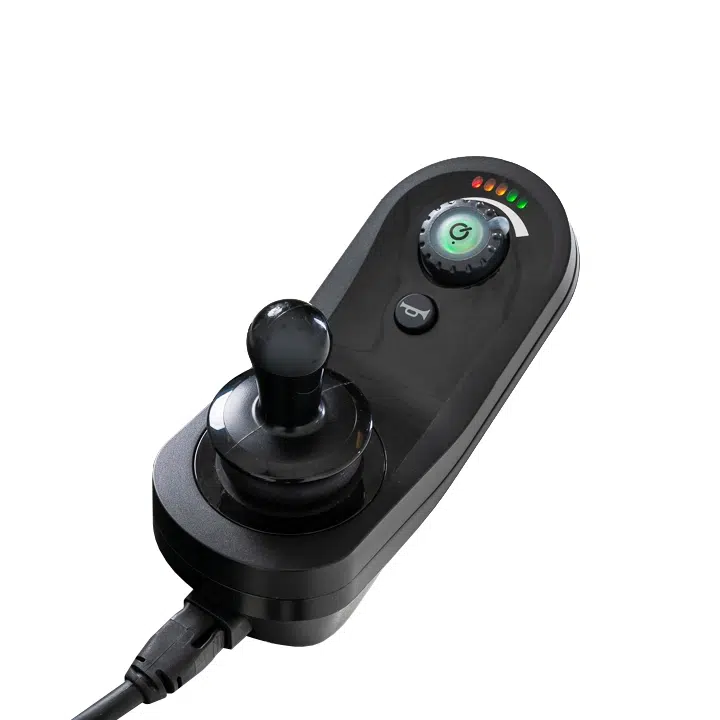

- New! 60-amp Dynamic LiNX Adjustable joystick speed dial enables you to adjust your speed comfort level
- New! Removable matte finish color through shrouds and 6 colors

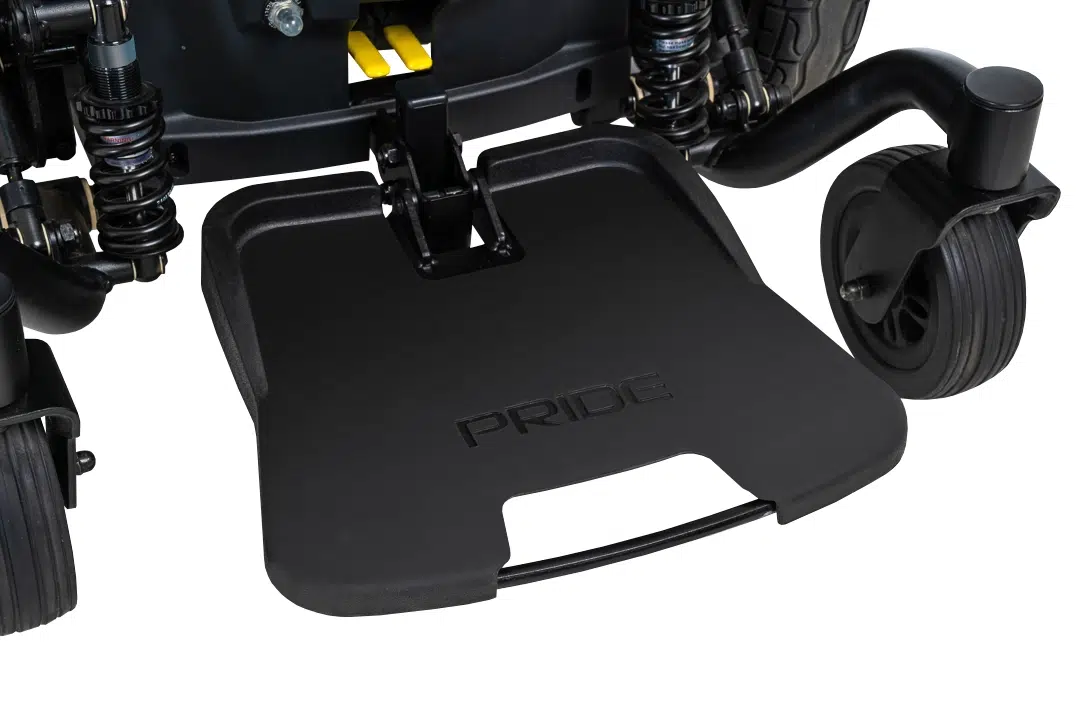

- Flip-up, height adjustable foot platform

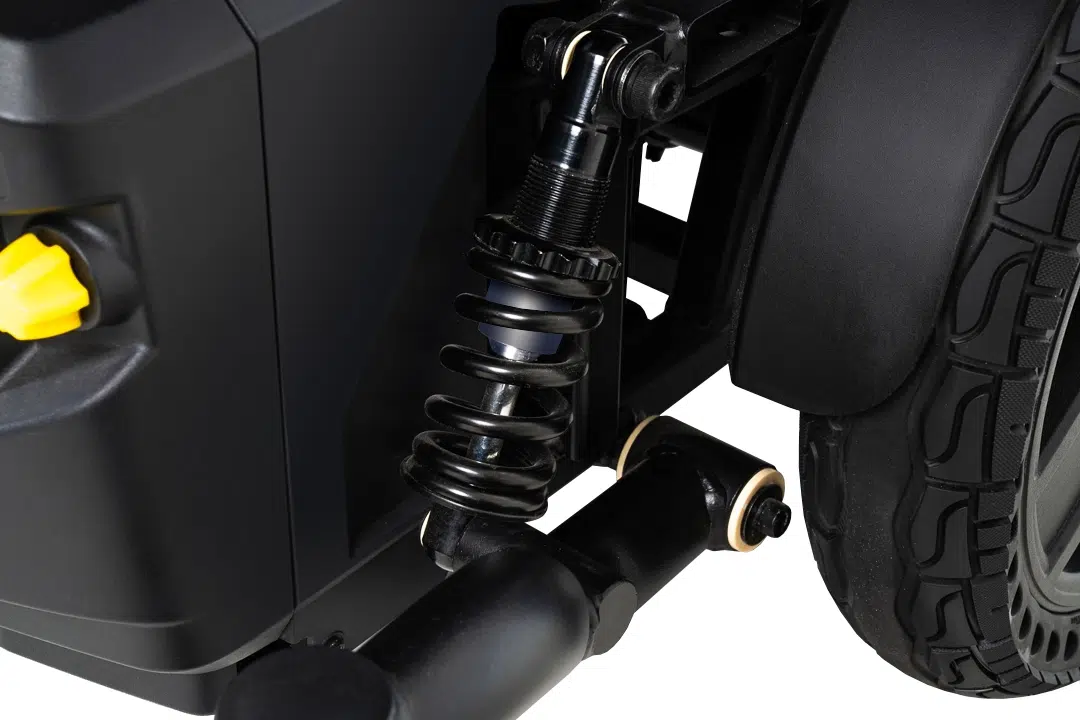

- Full independent front and rear Active-Trac ATX Suspension for enhanced performance over more varied surfaces such as thresholds, gravel, and grassy terrains
- In-line joystick mount
- Convenient access to the controller and batteries while the user remains seated
| Weight | 255.5 lbs |
|---|---|
| Dimensions | 40.5 × 25.75 in |
| Weight Capacity |
Up to 300 lbs. |
| Color |
Black ,Cardinal Red ,Iceberg Blue ,Robin's Egg ,Sugarplum ,White |
| Base model |
Captain Seating ,Solid Seat Pan Seating |
| Captain Seating Size |
From 16″W × 16″ – 18″D to 20″W × 18″– 20″D |
| Solid Seat Pan Seating Size |
From 16″W × 16″ – 18″D to 20″W × 20″D () |
| Driving Range |
Up to 19 miles at 300 lbs. ,Up to 21.5 miles at 200 lbs. |
| Maximum Speed |
Up to 4.40 mph |
| Drivetrain |
Two motor ,in-line ,Mid-Wheel drive |
| Braking System |
Regenerative and electromechanical |
| Suspension Type |
Active-Trac® (ATX) |
| Disassembles |
No |
| Turning Radius |
22.0" |
| Ground Clearance |
3.00" |
| Overall Dimensions |
25.4" W x 40.5" L |
| High-Back Seat (max. size) |
6” x 16" – 18” ,18” x 18" – 20" ,20” x 18" – 20" |
| High-Back Seat-to-Floor Range |
19.75” – 21.25” |
| Standard Seat Weight |
57.80 lbs. |
| Weight of Heaviest Piece |
125.7 lbs. |
| Weight Without Batteries |
183.50 lbs. |
| Joystick Options |
Right ,Left and Swing-Away |
| Front Wheels |
6" Casters |
| Drive Wheels |
13.75" Perforated |
| Rear Wheels |
6" Casters |
| Battery Size (2 required) |
NF-22 |
| Standard Battery Charger |
3.5A ,off-board |
| Battery Weight |
72.00 lbs. |
| Per-Charge Range |
Up to 19 miles at 300 lbs. ,Up to 21.5 miles at 200 lbs. |
| Brand |
Pride Mobility |
You must be logged in to post a review.
5-Year Limited Warranty
For five (5) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
- Main Frame
13-Month Limited Warranty
For thirteen (13) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Electronic Assemblies including:
- Charger Assembly
- Controller
- Joystick
Main Frame Assemblies, including:
- Metal Seat Framing
Other components, including:
- Electrical Harnesses
- Drivetrain
- Accessories
- Brakes (Electronic Function ONLY)
- Anti-tip Forks
- Caster Forks
- Front Riggings
- Front Rigging Mounting Brackets
- Bearings and Bushings
13-Month Limited Warranty
The batteries are covered by a separate thirteen (13) month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.
NOTE: Starting from date of product delivery, battery charge must be maintained to ensure warranty coverage. For mobility products which are not used regularly, or during periods of storage prior to and after purchase date, batteries must be charged once a week, for 24 hours. Failure to do so will void battery warranty.
NOTE: For Lithium-ion battery warranty information, refer to the Lithium Warranty Insert: Click here
WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS Plastic
- Shrouds
- Motor Brushes
- Upholstery and Seating
- Brake Pads
- Tires and Tubes
- Fuses/Bulbs
- Circumstances beyond the control of Pride
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
- Repairs and/or modifications made to any part without specific consent from Pride
Exclusions also include components with damage caused by:
- Parts/accessories that are not Pride original parts and are not purchased through an authorized Pride provider.
- Contamination
- Abuse (including but not limited to product being dropped or being subjected to severe impact/crush), misuse, or negligence
- Battery fluid spillage or leakage
- Commercial use or use other than normal
- Improper operation, maintenance, or storage
NOTE: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period of time, or worn out through heavy use is not covered.
