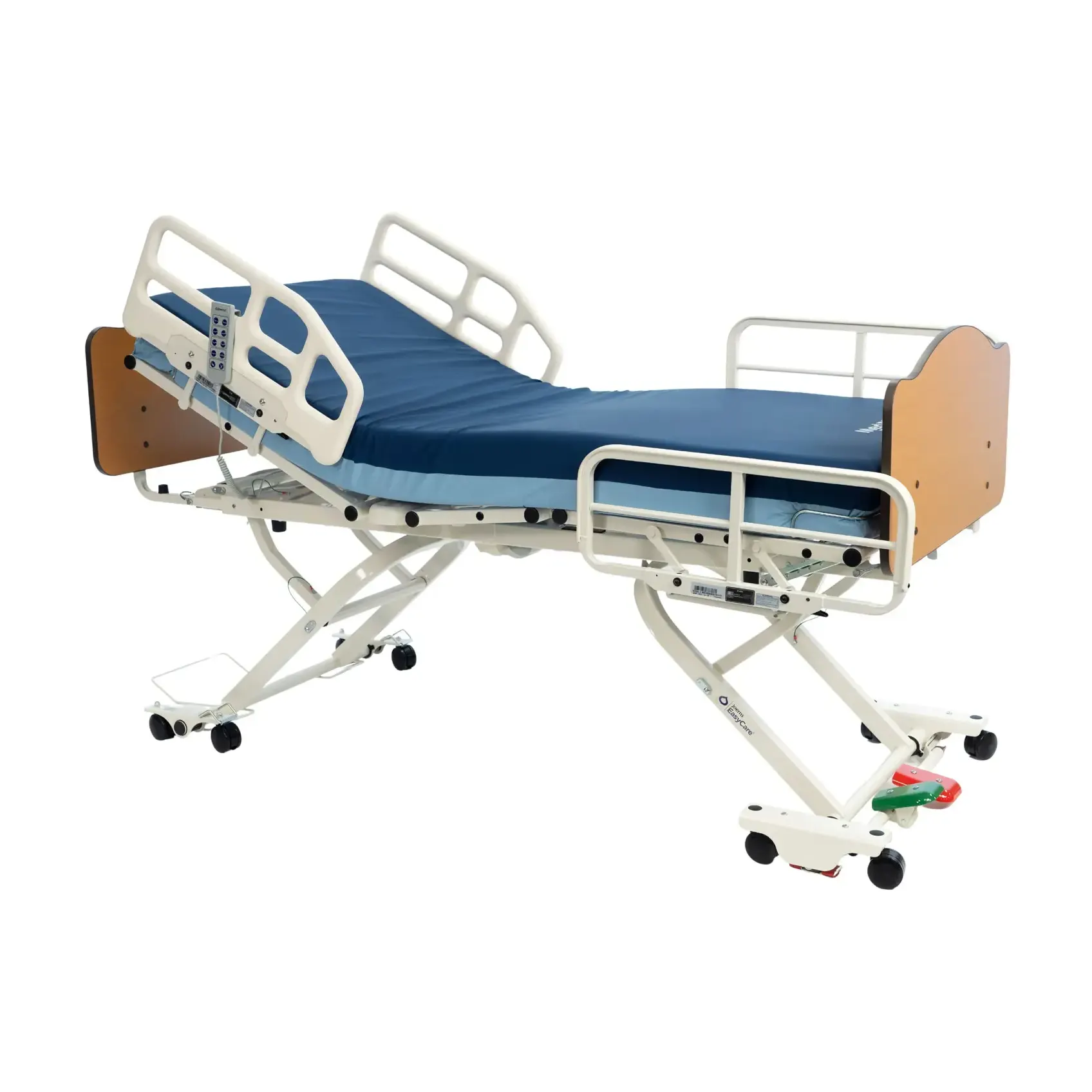

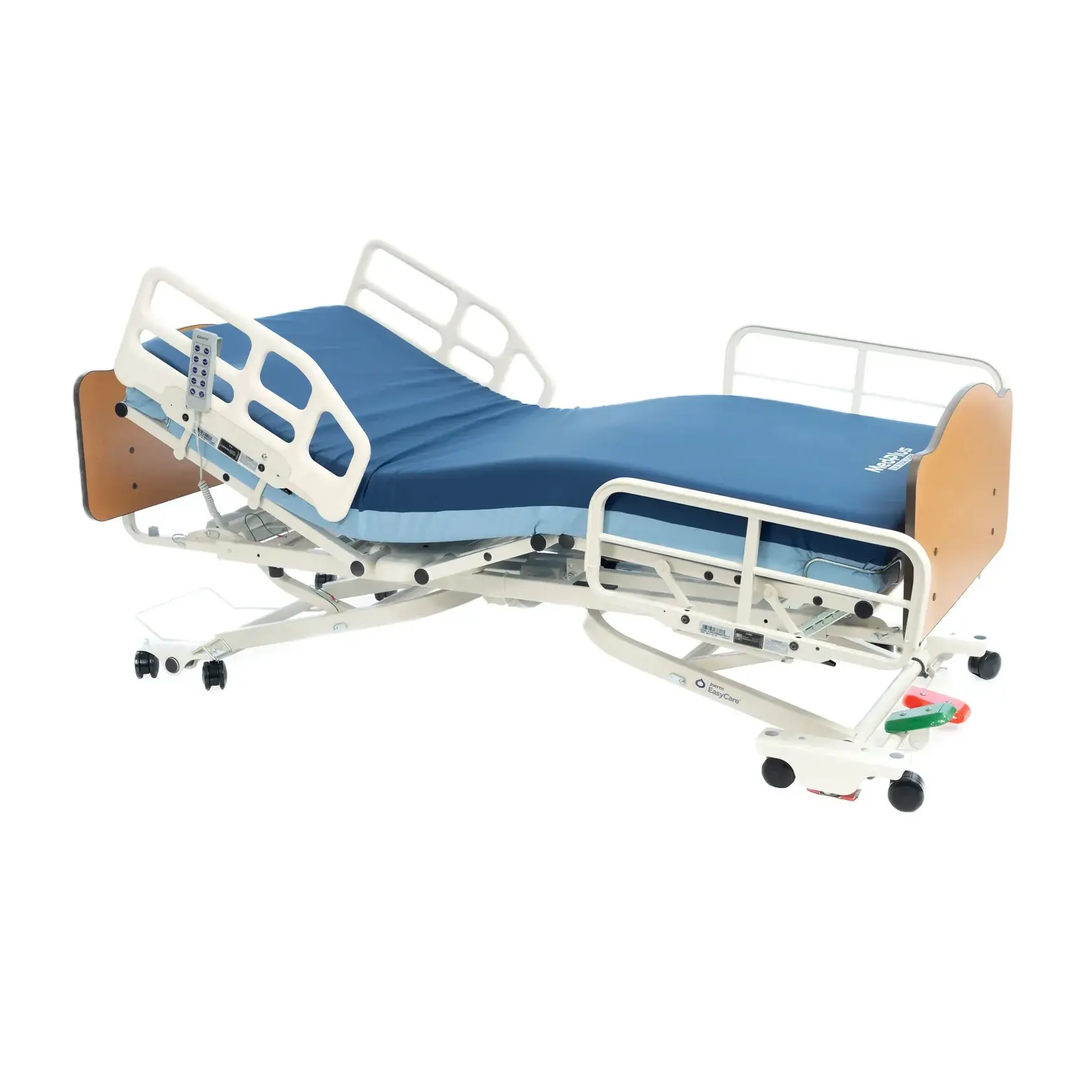

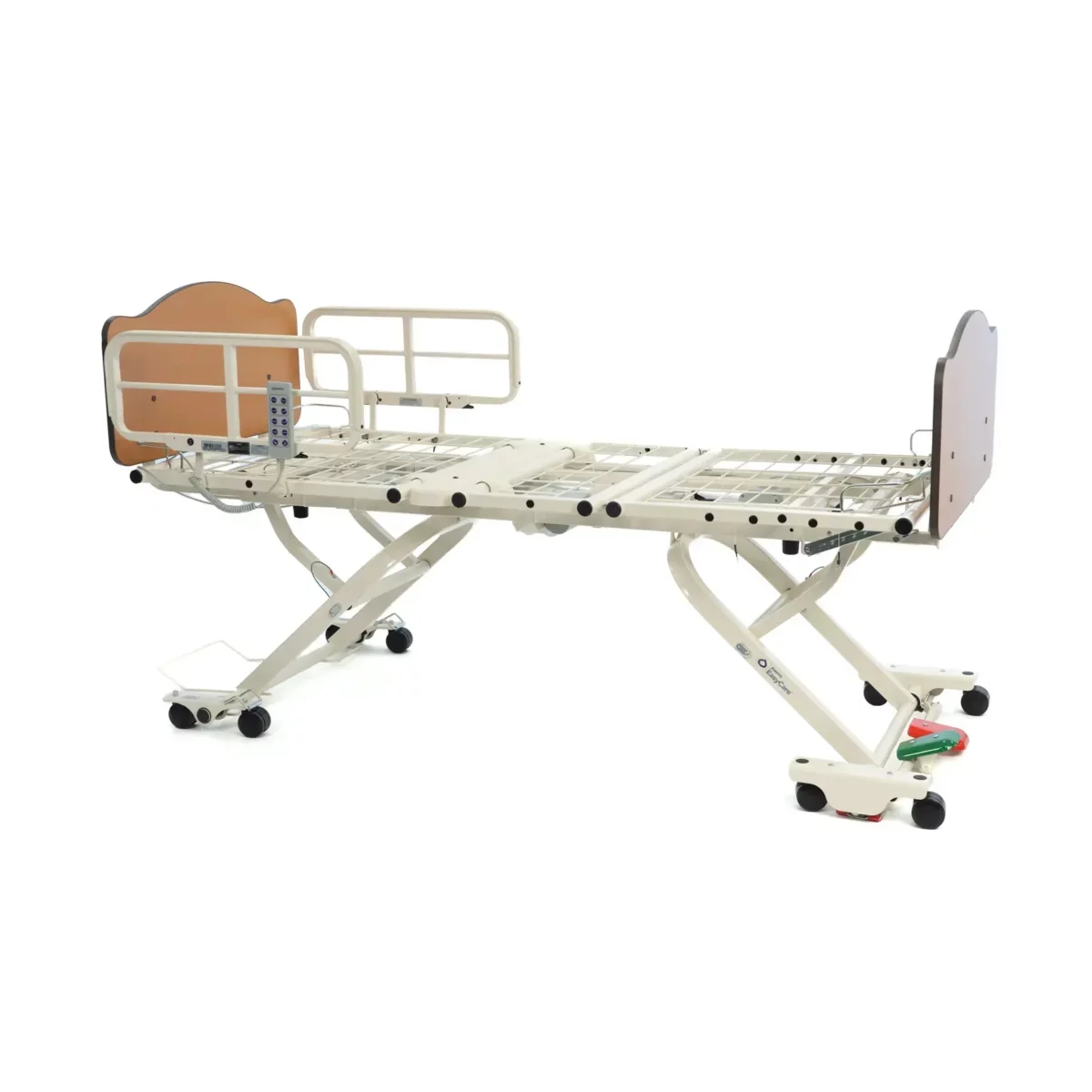

Joerns EasyCare Hi-Low Hospital Bed
Price range: $1,834.00 through $2,449.00
The bed you know and love, just Easy-ier to use & Easy-ier to choose. Create the bed that works best for your patients and facility with features such as best-in-class integrated width expansion, pedal locking system, reinforced sleep deck, redesigned panel retention, and new mattress corner stops that adjust with the bed width.
Segment-leading bed designed for caregiver ease of use
The revolutionary EasyCare is a fully configurable healthcare bed offered at price points ideal for care facilities of any size. Enhanced functionality and mobility features allow the bed to be configured to meet a variety of needs—for both the patient and caregiver. Create the bed that works best for your patients and facility with features such as best-in-class integrated width expansion, pedal locking system, reinforced sleep deck, redesigned panel retentions, and new mattress corner stops that adjust with the bed width.
Two-Pedal Locking System
Intuitive two-pedal locking system is centrally positioned at the foot end of the bed and easily visible due to color-coded status indicators. Available as a standard option with the roll-at-any height configuration.
Integrated Width Extension
Provides a sleep surface that expands and retracts from 35″, 39″ and 42″ and quickly adjusts to move through doorways while compliant to HBSW entrapment guidelines. Available at time of order.
Corner Mattress Stops
Corner mattress stops provide greater security of the mattress surface and easily adjust to the expanded widths of the frame up to 42 inches.
Panel Retention
A restructured and more robust sleep surface and panel mounting mechanism designed to provide added stability and extended product life.
Features:
- Travel Range: 7″ to 30″
- Locking System: Roll-in-Low Lock System & Care-Lock Roll at any Height Mobility
- Pendant Jacks on both left and right side
- Whisper Quiet DC Motors
- Welded Tubular Frame
- Grid Sleep Surface
- SoftTone Frame Color
- Baseboard Bumper
- Wide Stable Base
- Heavy-Duty Casters
- Mattress Stops
- Patented Lifting Mechanism
- EasyLift Leg Positioner
- Battery Pack Cable
| Frame Width |
36" Fixed Frame ,36" – 39" – 42" Expandable Frame |
|---|---|
| Bed Mobility |
Roll in Low ,Roll Any Height with Foot End CareLock |
| Weight Capacity |
600 lbs. |
| Weight (Roll-in-Low) |
220 lbs. |
| Weight (Roll-at-any-Height) |
230 lbs. |
| Bed Width |
35" |
| Bed Length |
80" |
| Low Height |
7" |
| High Height |
30" |
| Underbed Clearance |
23.7" |
| Maximum Back Angle |
65° to Horizontal |
| Maximum Knee Angle |
35° to Horizontal |
| MSP Translation |
<1" |
| Mobility Height (Roll-in-Low) |
7" |
| Mobility Height (Roll-at-any-Height) |
7" – 30" |
| Casters (Roll-in-Low) |
Four casters (two locking) |
| Casters (Roll-at-any-Height) |
CareLock Pedal Locking System |
| Mains Voltage |
120 VAC |
| Frequency |
60 Hz |
| Input Current |
4.0 Amps |
| Electrical Protection |
Class I Hospital Grade |
| Duty Cycle |
10%: 2 Min On/18 Min Off |
| Circuit Protection |
Auto Reset Current Sensor |
| Brand |
Joerns |
You must be logged in to post a review.
Joerns EasyCare bed is guaranteed for a period of four years from the date of delivery, against defects in materials and workmanship, under normal use and service.
This four-year warranty includes all mechanical and electrical components.
Steel structural components on beds are covered under warranty for a period of 15 years from the date of delivery.
Welds are covered under warranty for the lifetime (defined as 20 years) of the product.
Damage caused by use in unsuitable environmental conditions, abuse or failure to maintain the product in accordance with user and service instructions is not covered.
Any alteration, modification, or repair unless performed by, or authorized in writing by, Joerns Healthcare, will void this warranty.
Parts
Joerns beds contain various parts that wear from normal use. These parts, such as DC batteries, are not covered under the four-year warranty but are covered for 90 days after date of delivery.
Joerns Healthcare’s obligation under this warranty is limited to supplying replacement parts, servicing or replacing, at its option, any product which is found by Joerns Healthcare to be defective.
Warranty replacement parts are covered by the terms of this warranty until the product’s original four-year warranty period expires.
When requested by Joerns Healthcare, parts must be returned for inspection at the customer’s expense. Credit will be issued only after inspection.
